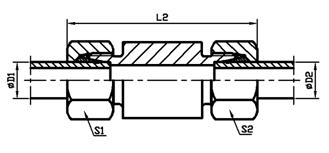

B1C-Y\B1D-Y
CYLINDER STRAIGHT BULKHEAD
Technical Parameters:
| SERIES | PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE (bar) | ||||
| T1 | T2 | D1、D2 | D | L1 | L2 | S1、S2 | ||||
| L | B1C-12Y | M12X1.5 | M12X1.5 | 06 | 18 | 56 | 85 | 14 | 103 | 500 |
| B1C-14Y | M14X1.5 | M14X1.5 | 08 | 20 | 56 | 85 | 17 | 121 | 500 | |
| B1C-16Y | M16X1.5 | M16X1.5 | 10 | 22 | 58 | 87 | 19 | 142 | 500 | |
| B1C-18Y | M18X1.5 | M18X1.5 | 12 | 25 | 58 | 87 | 22 | 176 | 400 | |
| B1C-22Y | M22X1.5 | M22X1.5 | 15 | 28 | 70 | 100 | 27 | 262 | 400 | |
| B1C-26Y | M26X1.5 | M26X1.5 | 18 | 32 | 69 | 101 | 32 | 333 | 400 | |
| B1C-30Y | M30X2 | M30X2 | 22 | 36 | 73 | 105 | 36 | 394 | 250 | |
| B1C-36Y | M36X2 | M36X2 | 28 | 40 | 73 | 106 | 41 | 448 | 250 | |
| B1C-45Y | M45X2 | M45X2 | 35 | 50 | 71 | 114 | 50 | 713 | 250 | |
| B1C-52Y | M52X2 | M52X2 | 42 | 60 | 70 | 115 | 60 | 997 | 250 | |
| S | B1D-14Y | M14X1.5 | M14X1.5 | 06 | 20 | 60 | 89 | 17 | 135 | 800 |
| B1D-16Y | M16X1.5 | M16X1.5 | 08 | 22 | 60 | 89 | 19 | 163 | 800 | |
| B1D-18Y | M18X1.5 | M18X1.5 | 10 | 25 | 59 | 91 | 22 | 201 | 800 | |
| B1D-20Y | M20X1.5 | M20X1.5 | 12 | 28 | 59 | 91 | 24 | 249 | 630 | |
| B1D-22Y | M22X1.5 | M22X1.5 | 14 | 30 | 72 | 107 | 27 | 337 | 630 | |
| B1D-24Y | M24X1.5 | M24X1.5 | 16 | 35 | 71 | 107 | 30 | 441 | 630 | |
| B1D-30Y | M30X2 | M30X2 | 20 | 38 | 71 | 114 | 36 | 509 | 420 | |
| B1D-36Y | M36X2 | M36X2 | 25 | 45 | 72 | 120 | 46 | 720 | 420 | |
| B1D-42Y | M42X2 | M42X2 | 30 | 50 | 73 | 126 | 50 | 873 | 420 | |
| B1D-52Y | M52X2 | M52X2 | 38 | 60 | 72 | 133 | 60 | 1248 | 420 | |
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut，it is necessary to insert
suffix“RN” after our part NO，for example B1C-30Y/RN.
