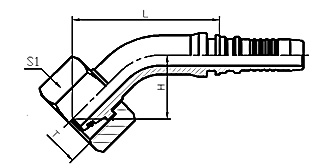

B20543-T
METRIC FEMALE 24°CONE O-RING H.T.
ISO 12151-2——DIN 3865
| HOSE BORE | DIMENSIONS | ||||||
| PART NO. | THREAD T | DN | DASH | TUBE O,D | L | B1 | H |
| B20543-36-12T | M36X2 | 19 | 12 | 25 | 82.5 | 46 | 33 |
| B20543-42-16T | M42X2 | 25 | 16 | 30 | 95 | 50 | 35.1 |
| B20543-52-20T | M52X2 | 32 | 20 | 38 | 109 | 60 | 39.5 |
