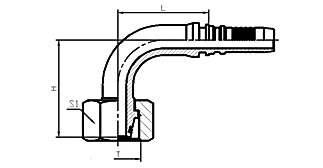

B20593-T
90°METRIC FEMALE24°CONE O-RING H.T.
ISO 12151-2——DIN 3865
| HOSE BORE | DIMENSIONS | ||||||
| PART NO | THREAD T | DN | DASH | TUBE O,D | L | B1 | H |
| B20593-36-12T | M36X2 | 19 | 12 | 25 | 69 | 46 | 67.8 |
| B20593-42-16T | M42X2 | 25 | 16 | 30 | 76 | 50 | 74 |
| B20593-50-20T | M52X2 | 32 | 20 | 38 | 99.5 | 60 | 89.5 |
