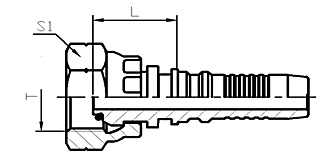

B22613-OR
BSP FEMALE 60°CONE O-RING
| HOSE BORE | DIMENSIONS | |||||
| PART NO. | THREAD T | DN | DASH | O RING | L | B1 |
| B22613-12-12OR | G3/4＂X14 | 19 | 12 | O171 | 26.5 | 32 |
| B22613-16-16OR | G1＂X11 | 25 | 16 | O221 | 30.4 | 41 |
| B22613-20-20OR | G1.1/4＂X11 | 32 | 20 | O291 | 35.8 | 50 |
| B22613-24-24OR | G1.1/2＂X11 | 38 | 24 | O351 | 36.7 | 55 |
