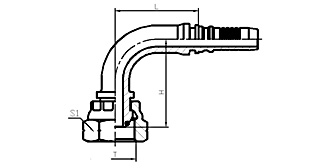

B22693-OR
BSP FEMALE 60°CONE O-RING
|
HOSE BORE |
DIMENSIONS |
|||||
| PART NO. | THREAD T | DN | DASH | L | H | B1 |
| B22693-12-12OR | G3/4＂X14 | 19 | 12 | 70 | 65 | 32 |
| B22693-16-16OR | G1＂X11 | 25 | 16 | 82 | 74 | 41 |
| B22693-20-20OR | G1.1/4＂X11 | 32 | 20 | 100 | 90 | 50 |
| B22693-24-24OR | G1.1/2＂X11 | 38 | 24 | 118 | 105 | 55 |
