B87393

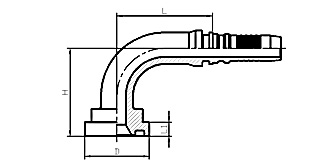

90°SAE FLANGE 3000 PSI CODE 61
ISO 12151-3—SAE J516
| HOSE BORE | DIMENSIONS | ||||||
| PART NO. | FLANGE SIZE | DN | DASH | L | D | L1 | H |
| B87393-12-12 | 3/4＂ | 19 | 12 | 69 | 38.1 | 6.73 | 59 |
| B87393-16-12 | 1＂ | 19 | 12 | 69 | 44.4 | 8 | 59 |
| B87393-16-16 | 1＂ | 25 | 16 | 80 | 44.4 | 8 | 66 |
| B87393-20-16 | 1.1/4＂ | 25 | 16 | 80 | 50.8 | 8 | 66 |
| B87393-20-20 | 1.1/4＂ | 32 | 20 | 99.5 | 50.8 | 8 | 78.5 |
| B87393-24-20 | 1.1/2＂ | 32 | 20 | 99.5 | 60.3 | 8 | 78.5 |
| B87393-24-24 | 1.1/2＂ | 38 | 24 | 117 | 60.3 | 8 | 94 |
| B87393-32-24 | 2＂ | 38 | 24 | 117 | 71.4 | 9.53 | 94 |
| B87393-32-32 | 2＂ | 51 | 32 | 137 | 71.4 | 9.53 | 115 |
