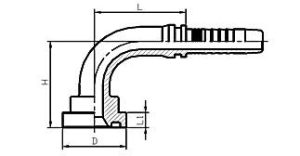

90°SAE FLANGE 6000 PSI CODE 62
ISO 12151-3—SAE J516
|
PART NO. |
FLANGE SIZE | DN | DASH | L | D | L1 | H |
|
B87691-08-08 |
1/2＂ | 13 | 08 | 43.5 | 31.7 | 7.75 | 48.5 |
|
B87691-12-10 |
3/4＂ | 16 | 10 | 55 | 41.3 | 8.76 | 55 |
|
B87691-12-12 |
3/4＂ | 19 | 12 | 64 | 41.3 | 8.76 | 63 |
|
B87691-16-12 |
1＂ | 19 | 12 | 64 | 47.6 | 9.53 |
66 |
| B87691-16-16 | 1＂ | 25 | 16 | 74 | 47.6 | 9.53 | 73 |
| B87691-16-20 | 1＂ | 32 | 20 | 91.5 | 47.6 | 9.53 | 85.5 |
| B87691-20-16 | 1.1/4＂ | 25 | 16 | 74 | 54 | 10.29 | 77 |
| B87691-20-20 | 1.1/4＂ | 32 | 20 | 91.5 | 54 | 10.29 | 89.5 |
| B87691-24-20 | 1.1/2＂ | 32 | 20 | 91.5 | 63.5 | 12.57 | 94.5 |
| B87691-24-24 | 1.1/2＂ | 38 | 24 | 109 | 63.5 | 12.57 | 108 |
| B87691-32-24 | 2＂ | 38 | 24 | 109 | 79.4 | 12.57 |
112 |
| B87691-32-32 | 2＂ | 51 | 32 | 129 | 79.4 | 12.57 |
137 |
